Profile

Model       Order No.     Power(kW)  Volume Fowrate(l /h)
VT300-05  271010100       4.1          Up to 45,000
VT300-10  271010200      7.45         Up to 65,000
VT300-25  271010300      18.6         Up to 80,000
VT300-30  271010400      22.37       Up to 130,000
VT300-50  271010500      37.3         Up to 185,000

Working Priciple:
While we on the equipment , as the water inside tank or container with start to flow out and flow into tank in a continuous flowing mode. While we pour in the powder or gel into the funnel on top, we can open the ball valve as the vacuum suction generate automatically as venturi efffect in the show. As the powder flow into the chamber to mix with circulation water , the powder will wetted simultaneously to prevent lumping and fish eyes results..

BRAND : DYNA-FLYERS
MODEL : VT300
TYPE : LAB/INDUSTRIAL INLINE HOMOGENIZER WITH HOPPER/SUCTION LANCE
 High Shear Pump with multiple functions with powder lance suction and hopper pouring ( to protect safety of operator)

The system include the vertical inline mixers to suck in the vanila sugar powder that pour into the funnel. After the raw material suck into the tank, it will be heating up 85 degree celcius with slow speed stirrer evenly distributing the heat for the products as it will help to shorten the boiling time.

Item Included :

MVHT-350 working volume : 350Liter heater tank-1 unit, Dyna-Rotate 2.2kW Packing Lobe Pump- 1 unit, VT300-03 2.2kW vertical inline homogenizer/shear pump

Order Code : 7314500

In Technical Aspects Solving Problem As Below:

PROBLEM: 1.1 The powder floats on top of the surface of the liquid and can only be incorporated into the liquid by the use of high turbulence (to form a vortex) resulting in air incorporation. The quality of the product suffers and may be different from batch to batch.

1.2 very often insufficient raw material may be used to achieve the required result, or much more raw material has to be used to achieve the required effect than normally would be necessary with complete wetting of the powder.

VT300 Working Principle

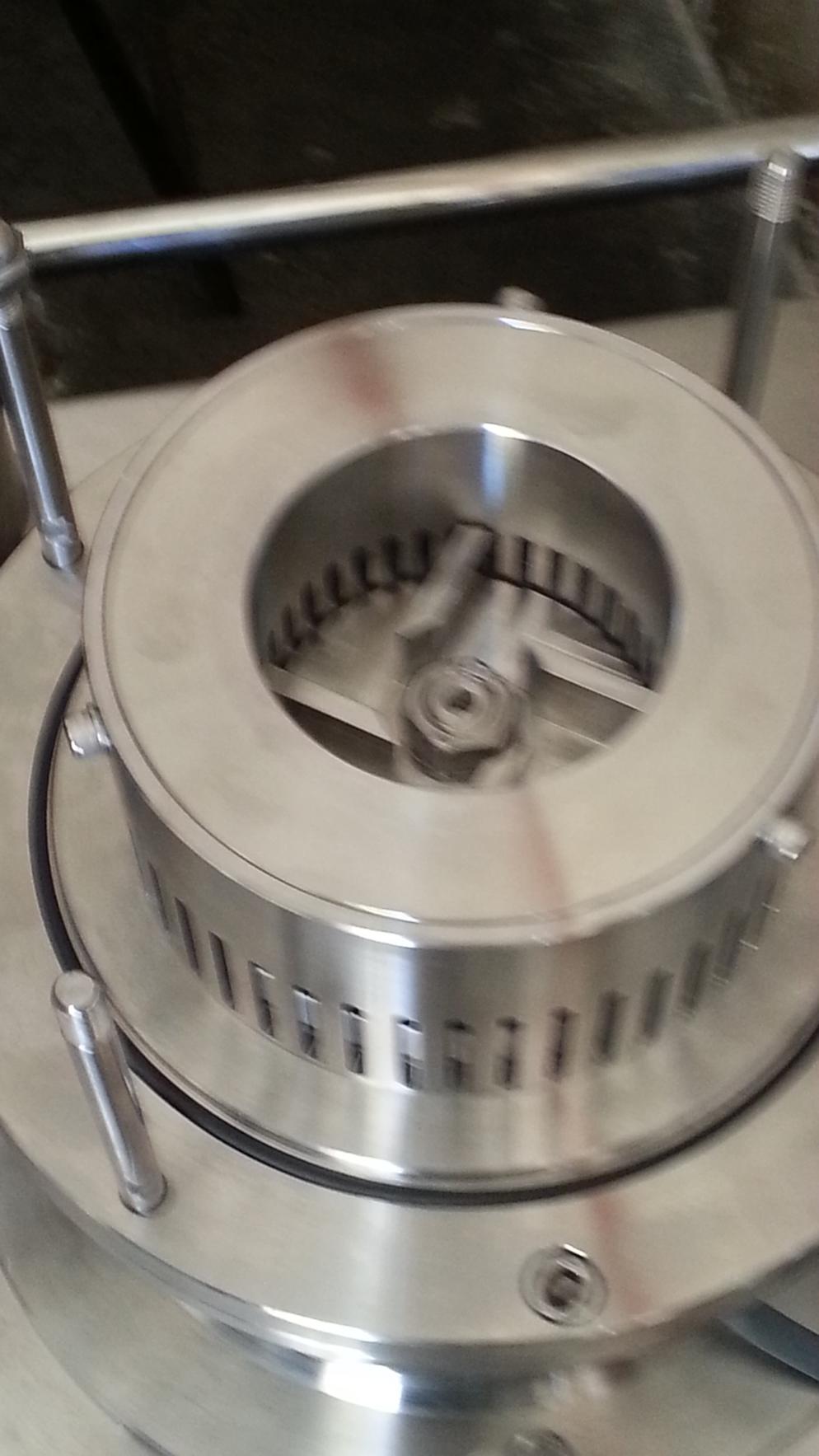

The machine works according to the rotor-stator principle.It is not placed inside but outside the main vesseland connected to it by a piping system. The liquid in thetank is circulated in a loop, as it would be with a pump.Because of the special geometry of the rotor, the liquidbuilds up a vacuum inside the dispersing chamber. This

2.3 Regardless of batch size and viscosity, agglomerate-free and reproducible products may be produced in a very short time. Their reduced density results in reduced VOC emissions due to the increase in volume.Powders, granulates and liquids may be inducted and dispersed quickly, without dust or losses.

2.3 Increase the micropheres properties of the products in other word can reduce the binder and matting agents required to be added.

Click for more informations and video : http://www.thesuccesstechnic.com/vt300-dyna-flyers-inline-series.html

https://www.youtube.com/watch?vnDf8e2SBO0 works in manner of quickly suct in carpopol powder from the funnel.while open tank.water for circulation

https://www.youtube.com/watch?v=M7zfoXP-Utc-VT300-03 Vertical Inline Homogenizer for.hydrophopic products

https://www.youtube.com/watch?v=Ir5EW79FjuQ-VT30-10 Dyna Flyers for gel viscosity:50000cps suck into tank circulation with water

The VT300PW SERIES offers all advantages of the VT300 Technology and is specifically tailored to the requirements of the dairy and food industries.
It is featured by its 3A certified design and a powder handling hooper with an ergonomic working height. The machine is connected directly to an existing vessel and can be operated with a low effort. Due to the strong induction vacuum besides the induction from a hopper, an induction tube can be used to induct and disperse directly from a powder container.
Even strongly sticky and thickening powders may be inducted and dispersed fast and clean
Liquids such as oils may be inducted and emulsified as well out of a barrel
Due to the simple set-up a trouble-free operation is guaranteed
The machine may be CIP-cleaned and with the fast clamping system it is easy to open and may be assembled without any problem and tension-less
3A certified design

Model         Order No.     Power(kW)    Suction Fowrate(kg /min)
VT300-03    271010000       2.2             Up to 35
VT300-05    271010100       4.1             Up to 70
VT300-10    271010200      7.45            Up to 195
VT300-25    271010300      18.6            Up to 230
VT300L-03  271011100       2.2             Up to 35
VT300L-05  271011200       4.1             Up to 70
VT300L-10  271011300      7.45            Up to 195
VT300L-25  271011400      18.6            Up to 230
** VT300 is funnel/hopper attachment
**VT300L is lance attachment

Please print out the attached form for the prospect customer interested to VT300 Series Inline Mixers to fill in for detail quote

• Cost Saving and higher yields by reduce batch time ,improve product Quality & consistency with High Efficiency, High Shear continuous Mixing
• Low Maintenance-No Bushings, Shims or Wear Sleeves
• CIP-able and designed for rapid disassembly for cleaning or inspection

The base liquid is drawn from the vessel by the centrifugal pump/lobe pump(for high viscosity products) and passed through the venturi assembly tee connection into the VT300 Inline Homogenizer. The high velocity flow through the venturi creates a vacuum in the chamber below the powder hopper. The liquid is returned to the vessel by the self-pumping Horizontal or Vertical VT300 series Inline Homogenizer.The powder is fed into the specially designed funnel. Once the liquid is recirculatingthe powder feed valve is opened. The powder is drawn into the venturi, where the liquid and powder streams are instantly mixed and pass immediately to the inlet of the Horizontal or Vertical VT300 series Inline Homogenizer. The liquid and solids are then subjected to intense high shear in the work head of the Horizontal or Vertical VT300 series Inline Homogenizer

• Safe Operation on Floor Level
• Average Droplets of 3-5 Microns...with 98%
• Distribution Under 5 Microns
• Fully Machined 316SS Housing and S/S Motor ( on request )
