BT200-03 3hp homogenizer c/w Electrical Rope Hoist Trolley Stand

  • Brand:
    Dyna-Stream
  • Working Volume (ml):
    1 liter - 200 liter (depend on container size)
  • Motor Power(kW):
    2.2kW 3 phase Normal or Ex-Proof
  • Operating Environment:
    0-175°C, 95% rel. humidity
  • Protection class:
    IP55
  • Working Temperature and Pressure Range:
    Up to 160° C 15 bar
  • Seal type:
    Teflon/Brass Bush ,Lip Seal (150° C ) or Double Acting Mechanical Seal (160° C and 15 bar)
  • Speed range (rpm):
    1000-3000
  • Speed control type:
    220V/50-60Hz frequency inverter control : 0-6000 rpm
  • Sterilization Method::
    All
  • Standard Shaft Length ( mm):
    750 - 1650
  • pH Range:
    2-13
  • Suitable for solvents & abrasive substances:
    YES
  • Ultimate Fineness, Suspensions&Emulsion: (µm):
    10-15 / 1-10
  • Max Viscosity (mPa):
    100,000

Description

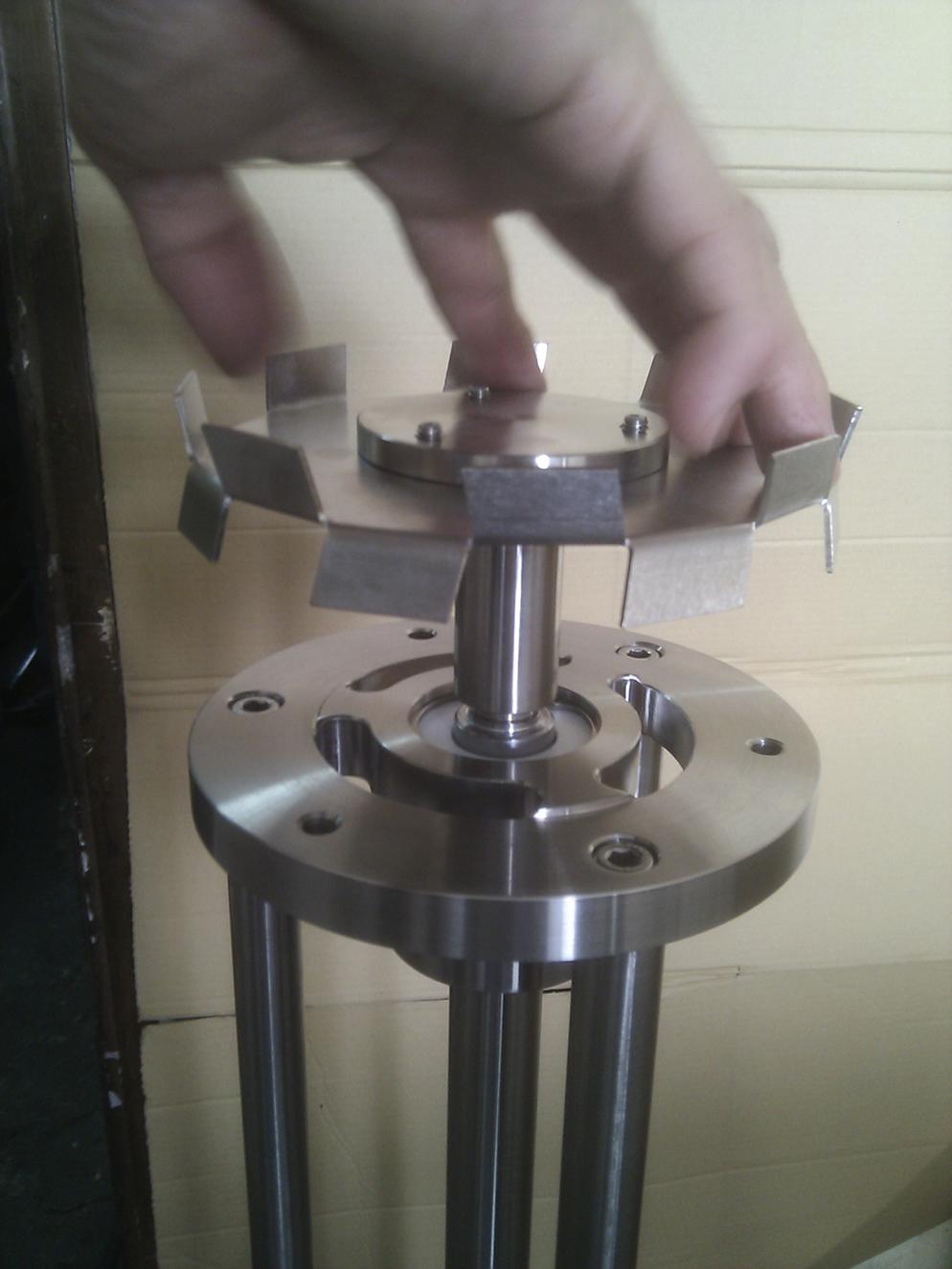

BT200 Batch Homogenizer - is high-performance dispersing machine for the production of emulsions and suspensions in batch operations c/w powder suction capability. Using the rotor-stator principle, it is best suited for applications that cannot be accomplished using conventional stirring methods. The machine is capable of processing highly abrasive products and media with a viscosity of up to 80.000 mPas.

Features & Specification

Working Volume (ml)     100 – 5,000 l

Operating Environment   0-175°C, 95% rel. humidity

Motor Power(kW)     2.2 -37 - 3 phase Normal or Ex-Proof

Protection class       IP55

Voltage/ Frequency  220-240V / 380-450V / 50-60Hz

Certified standards    89/336EEC,72/023/EEC, EMC acc. IEC/EN 61000-6-2 / 3, Safety acc. IEC/EN 61010-2-51

Working Temperature and Pressure Range    Up to 160° C  /  15 bar

Seal type    Lip Seal (150° C ) or Double Acting Mechanical Seal (160° C and 15 bar)

Speed range (rpm)   1,000 – 3,800


Warranty  1 years – spare part due to manufacturing defects

Speed control type   220V/50-60Hz

frequency inverter control : 0-6000 rpm

Sterilization Method:  All

Lfting system (optional)   Motorized S/S 304 or Mild Steel epoxy coated

pH Range:   2-13

Standard Shaft Length ( mm)    750 - 1650

Suitable for solvents & abrasive substances: YES

Weight (kg)    450-700

Ultimate Fineness, Suspensions&Emulsion: (µm) Max Viscosity
(mPa)

Suspension: 10-15      Emulsion : 1-10


Molecular/Colloidal Dissolving
Below is a list of some typical dissolving applications, and which Dyna-Ken mixer provides the best solution for Dyes,Crystal powders,Salts,Sugar,Detergents,Binding agents,Hydrocolloids,Elastomers,Resins,Thixotropic agents

Powder-Liquid Incorporation
Incorporating powders into liquids offers many challenges to processors. The powders may be difficult to wet out, and may produce fish-eyes if not effectively dispersed into the liquid. The powders are often added to a vessel by dumping bags into the top, creating a plume of dust and creating a possible health hazard. Eductors, blenders, and other powder addition equipment will often clog, or not perform as well as desired, or the system is too complex to clean and maintain. dyna-Ken mixer provides the best solution for :Xanthan gum,Starches,Fumed silica,Milk solids,Carbopol,Carbomel,Sugar,Cellulose,Xanthan Gum,Pigments,Pectin,Clays

Suspending -Wet Milling (Solid-Liquid)
Suspending is dispersing of solid particles in a liquid. It is often desirable to reduce the particle size of the solids in conjunction with dispersing, and this is often referred to as wet milling. With the use of our mixer and sufficient energy input, the final product will become homogenized best solution for Carbon black,Titanium Dioxide,Seeds,Polishing agents,Clays,Graphite,Crystals,Catalytic agents,Sulfur,Slurries,Metal Oxides

Emulsifying (Liquid-Liquid Systems)
Emulsifying is the process of dispersing one liquid in a second immiscible liquid, such as oil dispersed in water. A colloidal suspension is a system comprising particles dispersed in a liquid that do not settle out of solution due to their extremely small size of less than one micrometer for :Margarine,Ice cream,Proteins,Creams and Lotions,Salad dressings and sauces,Micro-encapsulations,Paraffin,Cosmetics,Mineral oils,Pesticides and herbicides,Waxes
